Wuhan Nice Laser Co., Ltd

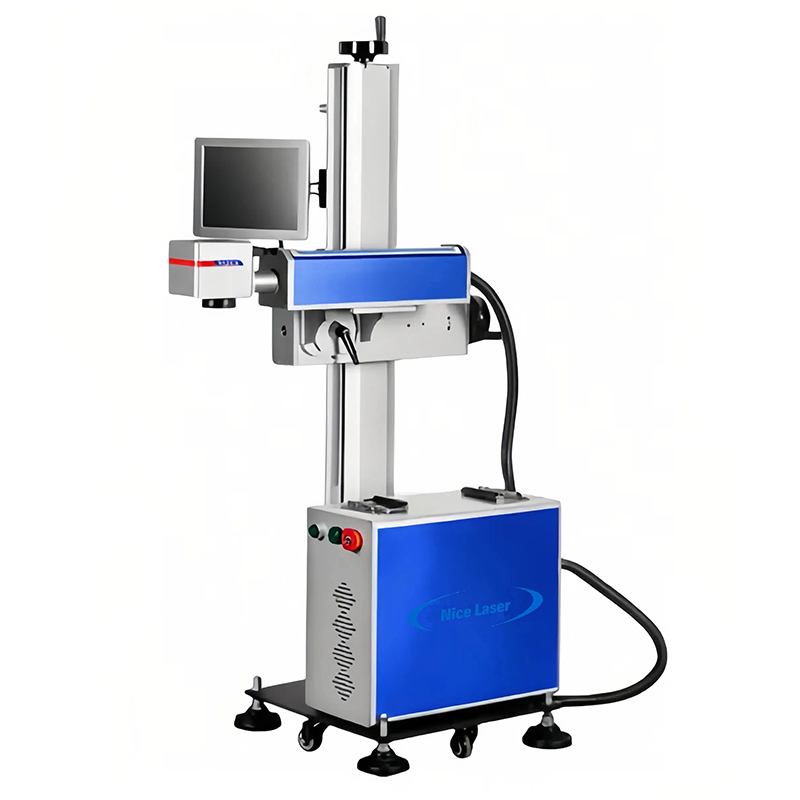

Mark on Fly Fiber Laser Marker LM20F
Products DETAILS
Mark on Fly Fiber Laser Marker LM20F
|
Model |
LM20F |
|
Wavelength |
1064nm |
|
Beam quality |
<1.4 m2 |
|
Laser power |
20/30/50W |
|
Cooling method |
Air |
|
Focus distance |
170mm |
|
Min line width |
0.15mm |
|
Min character |
0.7mm |
|
Scanning speed |
0-7000mm/s |
|
Graphic format supported |
DXF/PLT |
|
Voltage |
110/220V |
|
Frequency |
50/60Hz |
|
Dimension |
450mm*450mm*1300mm |
|
Weight |
80KG |
|
Working environment |
Temperature: 0-45 degrees, humidity: 5%-75%, no water or dust |
|
Power |
600W |
|
Safety protection |
IP54 |
|
Laser source safety level |
4 |
|
Marking angle adjustment |
0, 45, 90 degrees |
