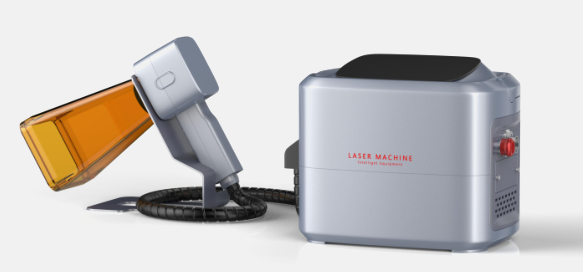

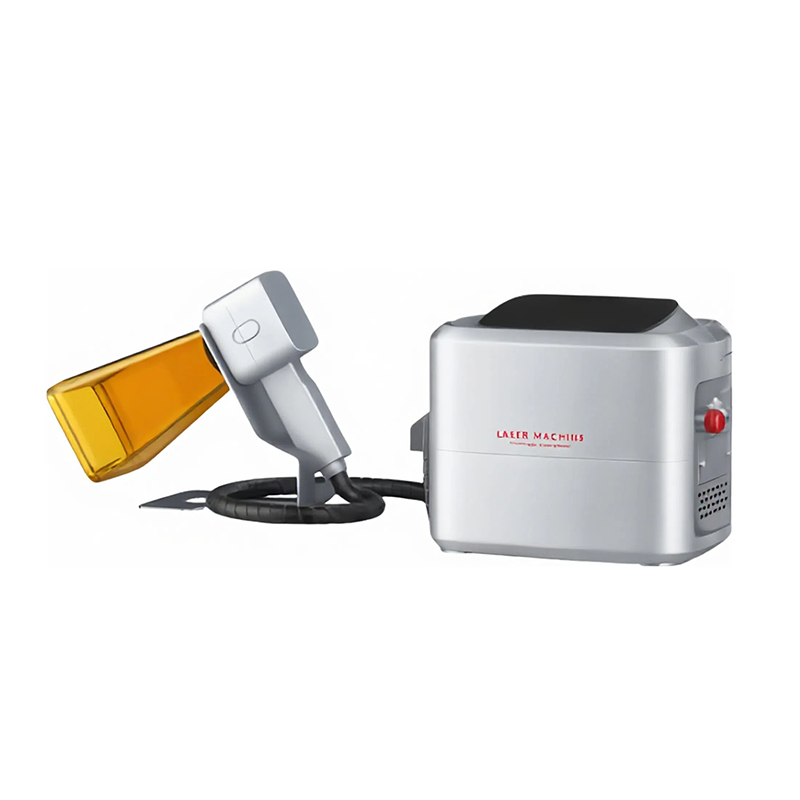

Handheld Fiber Laser Marker H20

Model

H20/H30

Laser source parameter

Laser power

20W/30W

Wavelength

1064nm

Repetition frequency

30~60kHz

Galvo parameter

Scanning speed

F=160mm, ≤7000 mm/s

Optical output parameter

F=160 mm

Standard

F=100mm

Optional

F=210 mm

Optional

F=254 mm

Optional

Marking range

110 mm ×110 mm

70 mm ×70 mm

145 mm ×145 mm

175 mm×175mm

Line width

0.06mm @ F=160 mm

Min character height

0.2mm @ F=160 mm

Cooling

Cooling method

Air cooling

Built-in Battery

216wh

Operation

Power supply

1.0KW/AC220V/50-60Hz

Temperature

0~40°C

Dimension

525*423*310mm

Weight

Gross weight: 10KG
